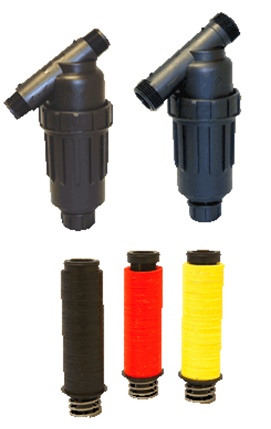

Dig Water Filter P30 and P31 Information

Click here to view, print, or download Dig Filters P30 and P31 Datasheet.pdf



Features:
  • Sediments accumulate on the outer face of the stacked discs, allowing clean water to flow through the stacked discs and out the middle of the filter
  • Disc elements provide in-depth filtration to retain organic matter
  • Discs have excellent resistance to most common chemicals
  • Easy maintenance; the discs can be extracted for easy cleaning
  • Interchangeable disc and stainless steel screen elements provide a wide range of filtration degrees

Specifications:
  • Operating Pressure: Up to 120 PSI (8.4 BAR)
  • Temperature Range: Up to 130°F (54°C)
  • 3/4" and 1" MNPT Inlet and Outlet

  • Filter Materials:
  • Housing: Polypropylene
  • O-ring: EPDM

Disc Materials:
  • Grooved Discs: Polypropylene
  • Disc Cylinder Assembly: Polypropylene
  • Tightening


SURFACE AREA AND FLOW RATES
Size Filtration Surface Area Max. Recommended Flow Rates
Inch mm Sq. Inch cm2 GPM m3/h
3/4" 20 28 180 13 3
1" 25 28 180 18 4


FILTRATION DEGREE AND MATERIAL
Mesh Micron Material Color
80 180 Polypropylene Blue
120 130 Polypropylene Red
150 100 Polypropylene Black


DIMENSIONS AND WEIGHT
  Dimensions A x D x L x H Weight
Size in Inches In mm Lb
3/4 4.71 x 1.5 x 6 x 7 120 x 38 x 152 x 177 .644
1 4.71 x 1.5 x 6 x 7 120 x 38 x 152 x 177 .638
