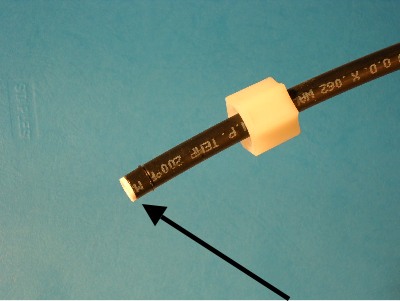

Make sure the small Insert Fitting is inserted into the end of the tube. |

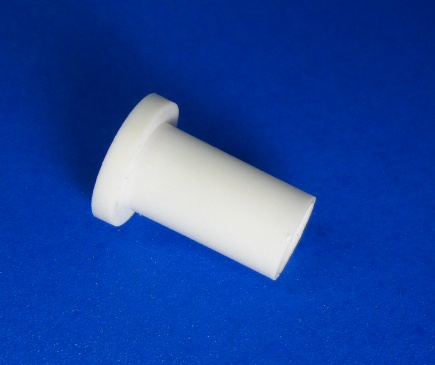

Insert Fitting. This small part is easily lost when disassembling the Crossover Tube or Outlet Tube. Keep a few on hand if you need. |
 |
 |

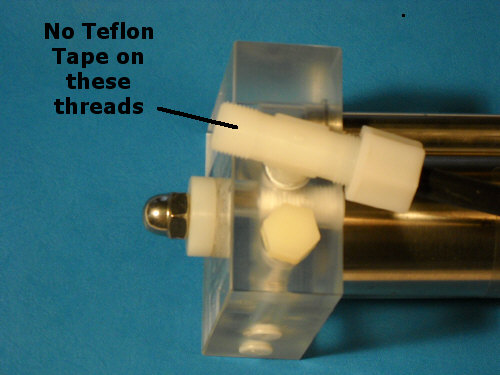

Use no teflon tape here. These are not sealing threads. Also do not use teflon tape on the tube itself. |

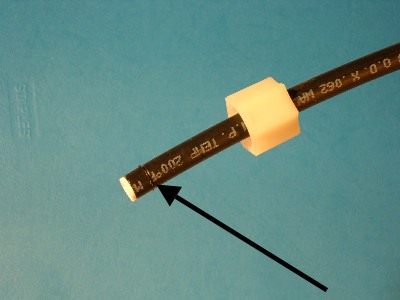

Very important: there must be a groove in the tube for the nut to catch on. If the groove is not deep enough, or has been damaged, you can cut it deeper with a knife. |
 |
 |

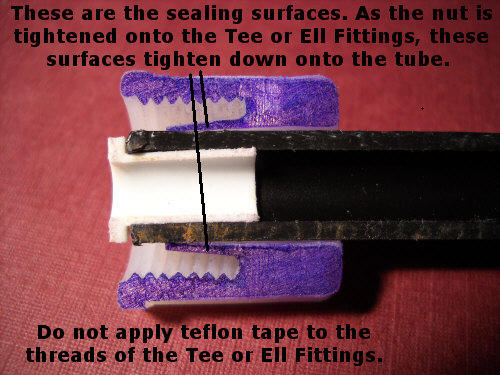

The sealing surfaces of the nut catch onto the groove in the tube, which keeps the tube from pulling out. |
Tube showing Insert Fitting, Tube Groove, and Nut, ready to insert into the Tee Fitting. |
